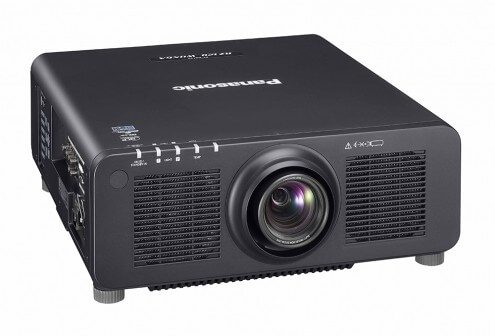

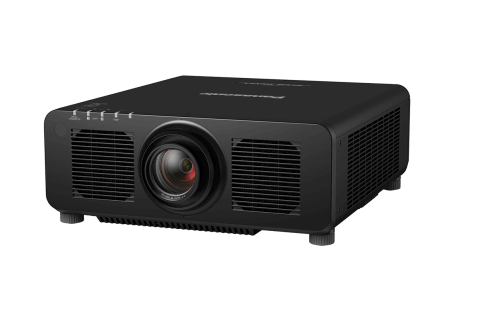

Panasonic PT-RZ120, WUXGA Projektor mit 12.000 ANSI Lumen
Profi Projektor für den Einsatz bei Events

Panasonic PT-RZ120 Projektor, WUXGA, 12.000 ANSI Lumen, Full HD Beamer – NEU

Panasonic PT-RZ120

Der Beamer WUXGA, Laser Projektor 12.000 ANSI Lumen ist zur Zeit unser Spitzenmodell.Der Full HD Beamer hat ein erstklassiges Bild. Durch seine Lasertechnologie hat er eine extrem hohe Lampenlebensdauer, das mach ihn zum idealen Full HD Beamer für die Veranstaltungstechnik. Wir haben auch verschiedene Wechseloptiken dafür, somit ist man sehr flexibel mit der Aufstellung/Installation.

  • 1-Chip-DLP-Laser, 12,600 lm (centre)/ 12,000 lm (ANSI), WUXGA
  • Auflösung: WUXGA 1920×1200
  • Kontrastverhältnis von 10.000:1
  • System Daylight View 3 für scharfe und lebendige Bilder auch in hellen Umgebungen
  • Technik: DLP

Äußerst kompakter 1-Chip-DLP Laser-Phosphor-Projektoren mit 12.000 ANSI Lumen.
Der PT-RZ120 kombiniert Solid Shine-Lasertechnologie mit 1-Chip-DLP-Technologie für lebendige, scharfe und immersive Bilder.

Ideal für Großveranstaltungen mit hohen Ansprüchen.

Projektoren für andere Anwendungen und Budget finden Sie hier (Text anklicken)


beamer wuxga, laser projektor 12.000 ansi lumen – beamer wuxga, laser projektor 12.000 ansi lumen

mieten

Preis pro Stück: 850,00 € ohne MwSt. / 1011,50 € mit MwSt.

Unverbindliches Angebot per email (klick den Button oben)

Spezifikationen

  • Brightness: 12,500 lm (Center)*1 / 12,000 lm*2
  • Resolution: 1920 x 1200 pixels
  • Technology: Laser 1-chip DLP
  • DLP™ chip | Panel size (mm) 17.0 mm diagonal (16:10 aspect ratio)
  • DLP™ chip | Panel size (inch) 0.67 inch diagonal (16:10 aspect ratio)
  • DLP™ Chip | Display Method DLP™ chip x 1, DLP™ projection system
  • DLP™ Chip | Pixels 2,304,000 (1920 x 1200) pixels
  • Lens PT-RZ120: Powered zoom (throw ratio 1.7-2.4:1), powered focus F 1.7-1.9, f
    25.6-35.7 mm
  • PT-RZ120L: Optional powered zoom/focus lenses
  • Light Source Laser diodes laser Class 1 (Class 3R for US models)
  • Screen size (diagonal) (mm) 1.27-15.24 m, 1.27-5.08 m with ET-DLE055, 2.54-8.89 m with ET-DLE035, 16:10
    aspect ratio
  • Screen size (diagonal) (inch) 50-600 inch, 50-200 inch with ET-DLE055, 100-350 inch with ET-DLE035, 16:10
    aspect ratio
  • Brightness: *1 12,500 lm (Center)*1 / 12,000 lm*2
  • Center-to-Corner Uniformity*1 90 %
  • Contrast*1 10,000:1 (Full On/Full Off, Dynamic Contrast Mode: 3)
  • Optical axis shift*2 | Vertical (from center of screen) +50 %, -16 % (+40%, -16% with ET-DLE060) (powered)
  • Optical axis shift*5 | Horizontal (from center of screen) +30 %, -10 % (+19%, -10% with ET-DLE060 / +28 %, -10 % with ET-DLE085)
    (powered)
  • Keystone Correction Range Vertical: ±40° (±16° with ET-DLE060, ±22° with ET-DLE085/DLE055, +5° with ETDLE035),
  • Horizontal: ±15° (±10° with ET-DLE060) (cannot be operated with ET-DLE035)
  • Keystone correction range with optional Upgrade Kit ET-UK20
    Vertical: ±45° (±16° with ET-DLE060, ±40° with ET-DLE150/DLE250 / supplied
    lens, ±22° with ET-DLE085/DLE055),
    Horizontal: ±40° (±10° with ET-DLE060, ±15° with ET-DLE085/DLE055), When
    vertical and horizontal keystone are used simultaneously, correction cannot be made
    exceeding total of 55°.
  • Installation Ceiling/floor, front/rear, free 360-degree installation

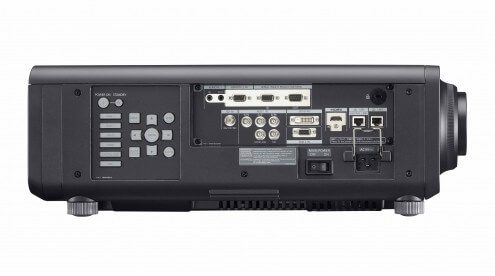

  • Terminals | SDI In BNC x 1: 3G/HD/SD-SDI input
  • Terminals | HDMI In HDMI 19-pin x 1 (Deep Color, compatible with HDCP)Terminals | DVI-D In DVI-D 24-pin x 1 (DVI 1.0 compliant, compatible with HDCP, compatible with single
    link only)
  • Terminals | RGB 1 In RGB x 1 (BNC x 5): RGB/YPBPR/YCBCR
  • Terminals | RGB 2 In D-sub HD 15-pin (female) x 1: RGB/YPBPR/YCBCR
  • Terminals | Serial In D-sub 9-pin (female) x 1 for external control (RS-232C compliant)
  • Terminals | Serial Out D-sub 9-pin (male) x 1 for link control
  • Terminals | REMOTE 1 IN M3 x 1 for wired remote control
  • Terminals | REMOTE 1 OUT M3 x 1 for link control (for wired remote control)
  • Terminals | Remote 2 In D-sub 9-pin (female) x 1 for external control (parallel)
  • Terminals | LAN RJ-45 x 1 for network connection, 10Base-T, 100Base-TX, compatible with PJLink™
  • Terminals | DIGITAL LINK RJ-45 x 1 for network and DIGITAL LINK connection, 100Base-TX, compatible with
  • PJLink™ (Class 2), HDCP, Deep Color
  • Power Supply AC 100-240 V, 50/60 Hz
  • Power Consumption 1,275W (TBD)
  • Operating noise*3 46 dB (TBD)
  • Cabinet Materials Molded plastic
  • Dimensions (W x H x D) (mm) PT-RZ120: 498 x 200*4 x 581 mm (with supplied lens)
    PT-RZ120L: 498 x 200*3 x 538 mm (without lens)
  • Dimensions (W x H x D) (inch) PT-RZ120: 19 19/32 inch x 7 7/8 inch *3 x 22 7/8 inch (with supplied lens)
    PT-RZ120L: 19 19/32 inch x 7 7/8 inch *3 x 21 3/16 inch (without lens)
  • Weight (kg)*6 PT-RZ120: Approximately 25.2 kg (with supplied lens) (TBD)
    PT-RZ120L: Approximately 24.4 kg (with supplied lens) (without lens) (TBD)
  • Weight (lbs.)*6 PT-RZ120: Approximately 55.6 lbs (with supplied lens) (TBD)
    PT-RZ120L: Approximately 53.8 lbs (with supplied lens) (without lens) (TBD)
  • Operating environment (℃/M) Operating temperature: 0-45 °C *5, operating humidity: 10-80 % (no condensation)
  • Operating environment (°F/Feet) Operating temperature: 32-113 °F *5, operating humidity: 10-80 % (no condensation)
  • Applicable software/application Logo Transfer Software, Multi Monitoring & Control Software, Geometry Manager
    Pro, Smart Projector Control for iOS/Android™
  • Note Note: PT-RZ120L offers the same performance as PT-RZ120, but comes without a
    lens.

    *1 Luminance measured at center of screen.

    *2 Measurement, measuring conditions, and method of notation all comply with
    ISO/IEC 21118: 2012 international standards. Value is average of all products when
    shipped.
    *3 Lens shift is not supported on the ET-DLE055, and the optical axis is fixed with the
    ET-DLE035.
    *4 With legs at shortest position.
    *5 The light output may be reduced to protect the projector depemding on the
    temperature or altitude of operational environment.
    *6 Average value. May differ depending on the actual unit.

Alle aufgeführten Preise verstehen sich als Mietpreise pro Einsatztag. Der zweite Einsatztag wird mit 50%, der dritte Einsatztag und alle weiteren Einsatztage werden laut Angebot berechnet. Es gelten unsere allgemeinen Geschäftsbedingungen
